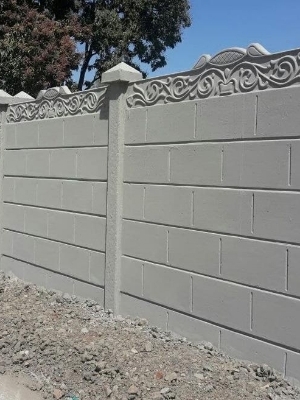

RCC Security Wall

Name: RCC Security Wall
Brand: Maruti Precast
Price: 95 INR
Availability: InStock

Price 95 INR/ Square Feet

Get a Price/Quote

RCC Security Wall Specification

Dimension (L*W*H)
Panel size: 2100 mm x 300 mm x 50 mm; Column height: 2100 mm

Wall Materials
Reinforced cement concrete (RCC)

Open Style
Fixed

Connection
Precast interlocking with RCC columns

Insulation
No thermal or acoustic insulation

Life Span
40+ years

Door Material
Mild steel (if gate provided)

Material
RCC (M20 or as specified)

Roof Material
Not applicable (open-top wall)

Thickness Of Wall Panel
50 mm

Door
Optional (as per design)

Floor Material
RCC

Floor Load
Up to 500 kg/m2

Earthquake Intensity
Designed for moderate intensity (Zone III-IV)

Color
Grey (natural RCC finish)

Use
Other

Panel Type
Precast RCC panel

Application
Perimeter security for factories, warehouses, schools, institutions, and housing societies

Weather Resistance
Excellent resistance to sun, rain, and frost

Fire Resistance
Non-combustible; resists up to 2 hours

Surface Treatment
Anti-corrosion coating for rebars

Finish Type
Smooth trowel finish

Column Specification
RCC columns with 100 mm x 100 mm section

Sound Resistance
Moderate, depending on height

Maintenance
Low maintenance, washable

Compressive Strength
Above 20 MPa (M20 grade RCC)

Steel Reinforcement
TMT bars, 8 mm to 10 mm as per IS standards

Installation Method
Modular, easy to install and relocate

RCC Security Wall Trade Information

Minimum Order Quantity
100 Square Feet

Supply Ability
5000 Per Month

Delivery Time
2 Days

About RCC Security Wall

An RCC (Reinforced Cement Concrete) security wall is a durable, precast boundary solution made from steel-reinforced concrete, typically 2- 6 inches thick. These, often modular or interlocking panels, provide rapid,waterproof, and high-security protection for residential, industrial, and commercial sites. They offer a, long-lasting, crack-resistant alternative to brick, commonly featuring a matte or unpolished grey finish. Key Features and Specifications: Structure: Composed of solid rectangular panels and sturdy vertical posts/columns. Dimensions: Commonly 50mm (approx. 2 inches) thick, with variations up to 6 inches for heavy-duty applications. Material: High-quality concrete reinforced with steel, sometimes using structural fiber to control cracking. Installation: Prefabricated components allow for quick assembly, often taking only a few days for large perimeters. Durability: Waterproof, fire-resistant, and termite-proof, designed to withstand harsh weather conditions. Finish: Usually plain or matte, suitable for customization with paint or, cladding.

Superior Security and Durability

The RCC Security Wall provides exceptional protection due to its high compressive strength (20 MPa and above) and superior reinforcement with 8-10 mm TMT bars. Its modular build allows for secure interlocking, ensuring stability against moderate earthquakes (Zone III-IV) and various weather conditions. The anti-corrosion surface treatment further enhances the longevity of the structure, making it a reliable choice for perimeter security.

Effortless Installation and Maintenance

Featuring a modular design, the RCC panels and columns are engineered for quick onsite assembly and straightforward relocation. The fixed, open-style wall requires minimal upkeep and can be easily cleaned with water. Smooth trowel finishing gives an appealing appearance while reducing dirt accumulation. The optional mild steel gates add functionality without compromising on the wall's form or strength.

Wide Applicability and Long-Term Value

Suitable for diverse environments including factories, warehouses, educational institutions, and housing societies, the RCC Security Wall ensures robust perimeter defense. With a lifespan exceeding 40 years, its natural grey RCC finish remains aesthetically consistent over time. The combination of security, durability, and low maintenance provides significant value and peace of mind for property owners.

FAQ's of RCC Security Wall:

Q: How is the RCC Security Wall installed on site?

A: The RCC Security Wall uses a modular installation method where precast RCC panels are interlocked with RCC columns (100 mm x 100 mm section). This modular design enables easy, efficient assembly and quick relocation if needed. All components are pre-fabricated and assembled directly at your chosen location.

Q: What benefits does the anti-corrosion coating provide?

A: The anti-corrosion coating on the TMT bars protects the steel reinforcement from rust and environmental degradation, thereby enhancing the wall's durability and prolonging its lifespan-especially critical in humid or corrosive environments.

Q: When should I use the RCC Security Wall?

A: The RCC Security Wall is ideal for securing the perimeters of factories, warehouses, institutions, schools, and housing societies. Its robust construction and excellent weather resistance make it suitable for both temporary and permanent installations.

Q: Where can these precast RCC panels be applied?

A: These panels are versatile and widely used around industrial complexes, commercial properties, educational campuses, and residential societies to create strong, reliable security boundaries.

Q: What maintenance is required for the RCC Security Wall?

A: Regular maintenance is minimal. The smooth trowel finish allows for easy cleaning, and the anti-corrosion treatment reduces the need for frequent repairs. Occasional washing and routine inspections are generally sufficient to keep the wall in optimal condition.

Q: Does the RCC Security Wall provide fire and weather resistance?

A: Yes, the RCC panels are non-combustible and can resist fire for up to two hours. They are also resistant to sun, rain, and frost, making the wall suitable for varied Indian climates.

Q: What are the advantages of choosing a modular, precast design?

A: Modular, precast RCC walls offer fast installation, uniform quality, straightforward relocation or extension, and minimized onsite labor. This results in cost efficiency and reduced project timelines compared to traditional wall construction.
