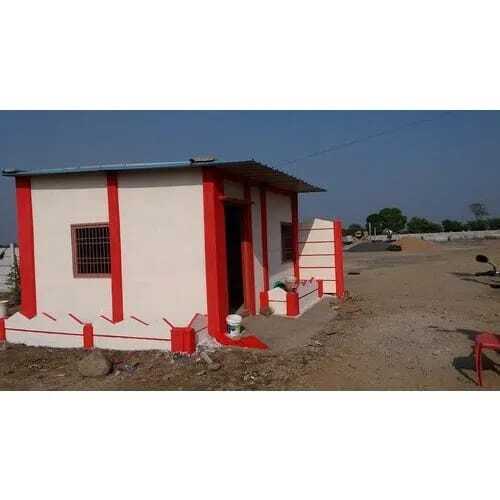

RCC Labour Quarter

• Color
• Grey/White (customizable)

• Connection
• Bolted or Welded Connections

• Dimension (L*W*H)
• Customizable as per site requirement (example shown approx. 12m x 6m x 3m)

• Door
• Other, Single/Double Leaf Steel Door

• Door Material
• Other, Steel / Metal Doors

• Earthquake Intensity
• Designed as per seismic zone requirements

• Floor Load
• High load bearing capacity, suitable for labour accommodation

• Floor Material
• RCC (Reinforced Cement Concrete)

• Insulation
• Other, Rockwool/Mineral wool (optional)

• Life Span
• 30-50 Years

• Material
• Other , Prefabricated RCC elements

• Open Style
• Other, Hinged (Doors), Sliding (Windows)

• Roof Dead Load
• Approx. 1.5 kN/m2

• Roof Live Load
• 1.5-2.0 kN/m2

• Roof Material
• Other, RCC (Reinforced Cement Concrete)

• Thickness Of Wall Panel
• 50-100 mm (customizable)

• Use
• Other, Labour Quarter, worker accommodation

• Wall Materials
• Other, RCC (Reinforced Cement Concrete) Panels

• Window
• Other, Glass/Aluminium/Steel material

• Window Material
• Other, Aluminium / Steel frame windows with glass panes

• Window Style
• Other, Sliding Windows

• Color
• Grey/Custom

• Connection
• Welded/bolted joints

• Dimension (L*W*H)
• Customizable, typical: 20 ft x 10 ft x 10 ft

• Door
• Other, Single/Double Leaf

• Door Material
• Other, Steel/Metal

• Earthquake Intensity
• Up to Zone IV Standard

• Floor Load
• Approximately 200 kg/m2

• Floor Material
• Cement Concrete

• Insulation
• Other, Thermal Insulation Optional

• Life Span
• 40-50 Years

• Material
• Other , Reinforced Concrete

• Open Style
• Other, Hinged

• Roof Dead Load
• Approx. 3 kN/m2

• Roof Live Load
• Approx. 1.5 kN/m2

• Roof Material
• Other, Reinforced Cement Concrete (RCC)

• Thickness Of Wall Panel
• 100-150 mm

• Use
• Other, Labour Accommodation

• Wall Materials
• Other, RCC/Concrete Blocks

• Window
• Other, 2-3 per unit

• Window Material
• Other, Aluminum/Glass

• Window Style
• Other, Sliding

• Color
• Light grey (standard); customizable on request

• Connection
• Steel connectors with grouting and welding

• Dimension (L*W*H)
• As per design requirement, typically 6m*3m*3m/unit

• Door
• Other, Single/Double, customizable

• Door Material
• Other, Steel or aluminum panel door

• Earthquake Intensity
• Up to 9 Richter scale

• Floor Load
• 2.0~5.0 kN/m2 (customizable)

• Floor Material
• Precast reinforced concrete panels

• Insulation
• Other, Polyurethane or EPS core for thermal insulation

• Life Span
• More than 50 years

• Material
• Other , High-strength precast concrete with reinforced steel

• Open Style
• Other, Sliding, Hinged

• Roof Dead Load
• 2.0-2.5 kN/m2

• Roof Live Load
• 1.5~3.0 kN/m2

• Roof Material
• Other, Precast concrete slab with waterproof membrane

• Thickness Of Wall Panel
• 75 mm - 150 mm

• Use
• Other, Residential, Commercial, Industrial, Institutional

• Wall Materials
• Other, Precast concrete panels with steel reinforcement

• Window
• Other, Various sizes, customizable

• Window Material
• Other, Double-glazed glass with aluminum frame

• Window Style
• Other, Sliding, Fixed

• Color
• Grey exterior, White interior (customizable)

• Connection
• Precast panel with steel fasteners

• Dimension (L*W*H)
• 3.0 m x 2.4 m x 2.8 m (custom sizes available)

• Door
• Other, Single-leaf MS Door, 900 mm x 2100 mm

• Door Material
• Other, Mild Steel (MS)

• Earthquake Intensity
• Up to Zone IV

• Floor Load
• 500 kg/m2

• Floor Material
• Precast RCC Panel

• Insulation
• Other, Optional EPS/PUF core

• Life Span
• 50 Years

• Material
• Other , High grade RCC M30

• Open Style
• Sliding

• Roof Dead Load
• 2.5 kN/m2

• Roof Live Load
• 1.5 kN/m2

• Roof Material
• Other, Reinforced Cement Concrete (RCC)

• Thickness Of Wall Panel
• 50 mm to 75 mm

• Use
• Other, Security Guard Room, Cabin, Site Office

• Wall Materials
• Other, Precast RCC Panels

• Window
• Other, 2 Nos., Each 900 mm x 1200 mm

• Window Material
• Other, Aluminium Sliding Window with Glass

• Window Style
• Other, Sliding

• Color
• White/Grey (customizable)

• Connection
• High strength steel anchor bolts and grout

• Dimension (L*W*H)
• Customizable; typical 10m x 7m x 3m

• Door
• Other, Main entry and interior; Pre-hung, multipoint lock

• Door Material
• Other, Solid wood/steel frame

• Earthquake Intensity
• Up to 8 Richter scale

• Floor Load
• Designed for standard residential loads (3-5 kN/m2)

• Floor Material
• Precast reinforced concrete slab

• Insulation
• Other, Polyurethane foam / EPS core within wall panels

• Life Span
• 50+ years

• Material
• Other , Precast reinforced concrete

• Open Style
• Swing

• Roof Dead Load
• 2-3 kN/m2

• Roof Live Load
• 1.5 kN/m2

• Roof Material
• Other, Precast concrete panel with insulation finish

• Thickness Of Wall Panel
• 100 to 150 mm

• Use
• Other, Residential House

• Wall Materials
• Other, Precast reinforced concrete panels

• Window
• Other, Tempered glass, double-glazed

• Window Material
• Other, Aluminium framed glass

• Window Style
• Other, Sliding and casement

• Color
• White with Blue trim (customizable)

• Connection
• Bolted and Welded modular system

• Dimension (L*W*H)
• As per design (Example: 20ft x 10ft x 8.5ft)

• Door
• Other, Single/Double Leaf

• Door Material
• Other, Steel

• Earthquake Intensity
• Designed up to 8 degree

• Floor Load
• 2.0 KN/m2

• Floor Material
• Precast Concrete

• Insulation
• Other, EPS/Rockwool/PU Sandwich Panel infill

• Life Span
• 20-50 Years

• Material
• Other , Precast Concrete, Steel Structure

• Open Style
• Sliding

• Roof Dead Load
• 0.5 KN/m2

• Roof Live Load
• 0.5 KN/m2

• Roof Material
• Other, Color Coated Steel Sheet

• Thickness Of Wall Panel
• 50 mm to 100 mm

• Use
• Other, House, Office, Accommodation, Site Camp

• Wall Materials
• Other, Precast Concrete Panels

• Window
• Other, PVC / Aluminum Alloy

• Window Material
• Other, PVC / Aluminum Alloy

• Window Style
• Other, Sliding / Casement
